Collecting various dusts without using water.

It is possible to collect efficiently a wide range of size of dry type dust except for gases, fumes and mists containing water. It is easier to treat a collected dust because it doesn’t need water, so you don’t have to get water treatment equipment.

Both of small and large type are available

It needs more space to install both of Water Saved Type Wet Electrostatic Precipitator and Electrostatic Precipitator separately. However, our Hybrid Wet Electrostatic Precipitator has a scrubber part and an electrostatic precipitator part combined, so that it contributes to saving space at site.

factories to dispose many iron scraps

Effective dust collection measure is required for iron scraps factories and automobile shredder factories because there are a lot of metal particles, resin particles, glass particles and oil fumes. Conventional cyclone dust collectors (collecting dust by centrifugal force) and scrubbers cannot collect oil fumes, however Hybrid Wet Electrostatic Precipitator is able to collect properly

companies planning to put collectors in a limited space

Dust collectors are necessary to collect dust certainly to keep air clean in factories.  Thus, in some cases, there are some factories that has a wide range of dust need to install more than 2 dust collectors. However, our Hybrid Wet Electrostatic Precipitator is able to collect various dust. Since Hybrid Wet Electrostatic Precipitator is compact, the issue regarding a limited space is solved.

companies received corrective actions from public organization

There might be some companies who receive some complaints regarding their dusts from neighborhood and have to take action based on corrective actions directed from public organization. We have received such an advice from companies and owners of factories, and provided suggestions for improvement. Please contact us about early settlement of dust troubles.

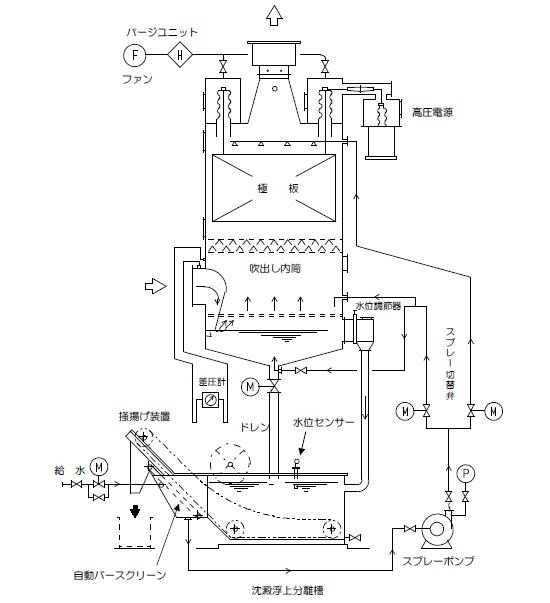

Product blueprint

  • “Hybrid Wet Electrostatic Precipitator” cleans the gases containing dust via two parts of disposal process, one is water saved type scrubber part (processing the dust by vigorously contacting with pooled water) and the other one is electrostatic precipitator part.
  • Dirty gases flowing into the machine from suction get vigorously contacted with stirred water in the scrubber part. In the process, larger dust are removed from the gases. After that, the gases and mist occurred in the scrubber part get charged by Corona Discharge through the electrostatic precipitator part. In the process, smaller dust is separated and collected. In the end, clean air comes out from the exhaust port.

Standard size chart

Type Gas Rate
m3/min.		 W L H H1 S D Fan Power
DBI-150-D 150 1,050 2,300 4,950 2,080 3,940 400 15kW
DBI-200-D 200 1,050 2,850 5,000 2,230 4,630 450 15kW
DBI-300-D 300 1,250 3,350 5,050 2,350 5,240 550 22kW
DBI-400-D 400 1,650 3,450 5,050 2,350 5,470 650 30kW
DBI-500-D 500 2,050 3,530 5,080 2,350 5,740 750 37kW
DBI-600-D 600 2,050 4,220 5,120 2,500 6,380 800 45kW
DBI-700-D 700 2,250 4,360 5,160 2,500 6,680 900 45kW
DBI-800-D 800 2,250 4,840 5,540 4,300 7,110 950 55kW
DBI-900-D 900 2,250 5,200 5,550 4,350 7,670 1,000 75kW
  • SUNTECHNO produces and sells not only “D.B Collector” but also other many industrial equipment and machinery
  • Customization is available for our products such as enlarging size and air based on your request.
  • If you have trouble of collecting and filtering submicron fumes, please feel free to contact us.
